Types of controls Torro for blinds, curtains ang windows.

230V AC - PHASE (LINE SWITCHING)

Control voltage 230V AC grom the building power network is passed to one of the wires of motor/controller. The motor has two control phases L1, L2, neutral wire N and depending on version/supplier - grounding wire PE (earth). In case of phase motors control is a power supply at the same time.
Control source: Main power supply 230V AC 50Hz
Control: Supply voltage to one of the 2 control wires L1, L2

RF - RADIO

Wireless control with 433.92 MHz radio frequency. Remote controls, radio wall transmitters or multi-channel controlers are used. One remote control can be used to control multiple receivers. Also, one receiver/motor with built-in receiver can be controlled by multiple remotes/transmitters.
Control source: Radio waves sent by radio transmitter RF (remote)
Control: Press or touch the key on the remote control or transmitter

24V DC - CHANGING THE POLARITY

Cable control is reversing the polarity of the DC voltage at the input to the motor. When motor is not working, no voltage is applied. Operation of the motor in either direction causes the input to 24V DC in the plus-minus polarity or negative-plus.
Control source: Power supply transforming voltage 230V AC in 24V DC
Control: Switch or radio receiver replacing "+" plus with "-" minus at the input to the motor

RS232/RS485 - SERIAL PORT

Control via serial RS232 or RS485. By a communication protocol data is transferred between devices. Two wires (RJ12 connector - conductor 1 and 6) are used for the control.
Control source: logical value 1 or 0 based on voltage analysis
Control: using a computer application or building management system.

DCT (DRY CONTACT) - POTENTIAL-FREE

Potential-free control is connecting the wires in the low-voltage cable at the motor or controller input. The voltage is transferred from the COM wire to the UP, DOWN, STOP. After the COM wire is connected to directional or STOP wire, motor start/stop working. Stop function can also be obtained by combining the COM wire with the UP and DOWN wires.
Control source: COM potential-free wire from motor,
Control: COM connection with UP, DOWN or STOP wires.


3-way power splitter - jack DC.SPL.0400.0035
New
Brand: Torro
3-way power splitter - jack | DC.SPL.0400.0035Input voltage230V ACMax. Working power5A Cable length0,35 m..
12.00€
Ex Tax:9.92€
4-way power splitter 24V DC, DX3-24VDC-PS
New
Brand: Torro
4-way power splitter 24V DC | DX3-24VDC-PSInput voltage24V DCSocketjack 5,5/2,1 mm Coverincluded Dimensions 65 x 47 x 27 mm..
13.00€
Ex Tax:10.74€
Charger AM25-CH-8.4
New
Brand: Torro
Barošanas bloks priekš AM25EB RF | AM25-CH-8.4Max. Power 1,7WVoltage 8,4VWorking power 0,3AWire3,0 mSocket jack5,5/2,1 mmDimensions115 x 24 x 24 mm..
16.96€
Ex Tax:14.02€
Connection box for DCT switch installation RJ11GN
New
Brand: Torro
Connection box for DCT switch installation | RJ11GNSocketRJ11 Cover included Dimensions 57 x 49 x 21 mm..
2.85€
Ex Tax:2.36€
Connection box for DCT switch installation RJ12GN-M
New
Brand: Torro
Connection box for DCT switch installation RJ12GN-MSocketRJ12 Cover included Dimensions 58 x 43 x 24 mm..
3.30€
Ex Tax:2.73€
Converter 230V > DCT (S) - Somfy, DX1-3-S
New
Brand: Torro
Converter 230V > DCT (S) - Somfy, DX1-3-SInput voltage230V ACSocketRJ12 Junction boxincluded Dimensions 76 x 59 x 28 mm..
27.20€
Ex Tax:22.48€
Converter 230V > DCT (T) - Torro, DX1-3-T
New
Brand: Torro
Converter 230V > DCT (T) - Torro | DX1-3-TInput voltage230V ACSocketRJ12 Junction boxincluded Dimensions 76 x 59 x 28 mm..
27.20€
Ex Tax:22.48€
Group controller AC405-01
New
Brand: Torro
4-motors group controller | AC405-01Connectors 4 Input voltage 230V AC Protection IP20 Dimensions 65 x 47 x 27 mm..
33.60€
Ex Tax:27.77€

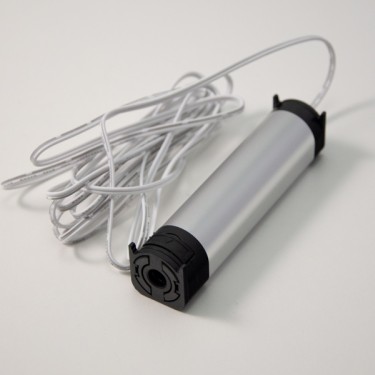

Limit switch AM24-ELS
New
Brand: Torro
Middle motor AM 24 limit switch | AM24-ELSHole 6 mm hex Wire 2,4 m Dimensions 126 x 25 x 25 mm..
20.50€
Ex Tax:16.94€
Line switching relay DX2-LSR
New
Brand: Torro
Line switching relay | DX2-LSR Input voltage24V DC Cover included Dimensions 65 x 47 x 27 mm..
26.30€
Ex Tax:21.74€
Power supply AC801-01
New
Brand: Torro
Power supply for AM 24/25 RF headrail V13 | AC801-01Input voltage 100-240V ACOutput voltage DC 24V/1AFrequency of voltage 50/60HzWire noneDimensions 115 x 24 x 21 mm..
24.00€
Ex Tax:19.83€
Radio receiver 1-channels AC226-01 RF
New
Brand: Torro
Radio receiver 1-channels AC226-01 RFCompact, easy to assembleDot move/continious move modeSealed housing protects against moistureDimensions128 x 31 x 22 mmChannels1Radio frequency 433.92Mhzvoltage230V ACWorking temperature-40°C~+85°CProtection classIP65 Sustainable working time5 min..
34.00€
Ex Tax:28.10€
Showing 1 to 12 of 32 (3 Pages)
