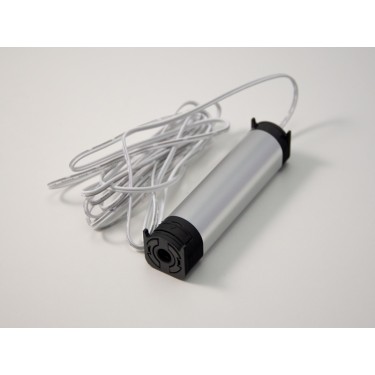

AM24 0,8/34 - 24V DC powering

AM24 0,8/34 - 24V DC powering
AM24 0,8/34 - 24V DC powering
New Hot
AM24 0,8/34 - 24V DC powering
AM24 0,8/34 - 24V DC powering
AM24 0,8/34 - 24V DC powering

AM24 0,8/34 - 24V DC powering

  • Power and control by the cable - changing the polarity
  • Limits adjustment via limit switch
  • 6mm hex adapter - for venetian blinds
    5mm square adapter - for roman blinds
    5mm square adapter - for pleated blinds
  • Integral rubber rail adaptation minimizes vibration
  • Max number of circles between limits - 60

Wire

DC 24V

  • black = +
  • white = -
Motor parameters
Torque [Nm] 0,8
Revolutions per minute [rpm] 34
Voltage 24V DC
Power consumption [A] 0,65
Power [W] 16
Diameter [mm] 24
Length [mm] 201,4
Silent run No
Built-in radio receiver No
Electronic limit setting No
DTC potential-free No
Limits (main | intermediate) 2 | 0
IP protection class IP III
Working temperature -10 ÷ 60 °C
Cable length [m] 1,45
Purpose
For horizontal blinds Yes
For pleated blinds Yes
For roller blinds No
For roman blinds Yes
For outdoor systems No
  • Availability: In Stock
  • Model AM24 0,8/34
48.00€
Ex Tax: 39.67€
